Description

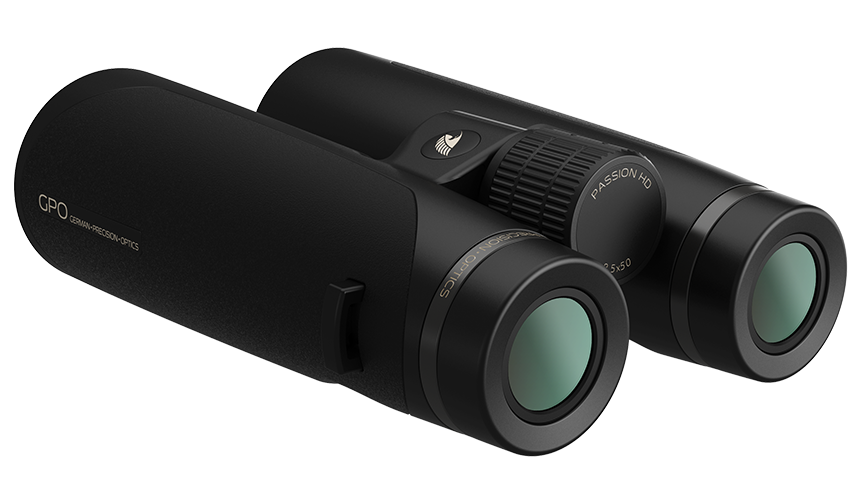

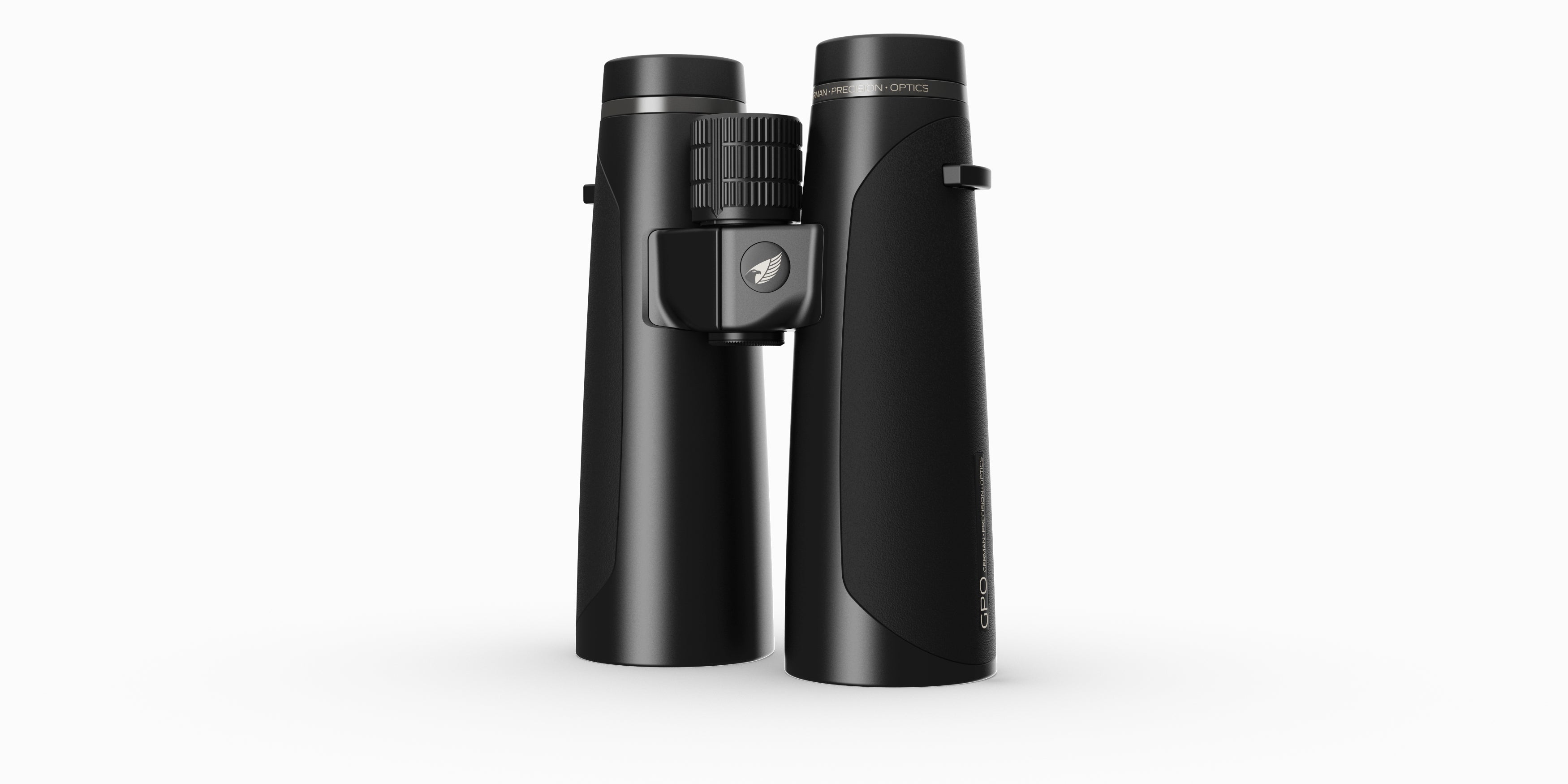

PASSION™ HD products represent the absolute premium class from GPO. HD optics design combined with state-of-the-art multi-layer coatings creates optical excellence in transmission, field of view, edge-to-edge sharpness, close focus and colour rendition. Thanks to our PASSIONdrop™ water-repellent coating, all optics are dirt and water resistant. The innovative micro bridge offers high quality and a very ergonomic design. The magnesium housing, coated magnesium bridge and aluminium rotating eyecups offer maximum robustness with minimum weight.
The dioptre adjustment has been integrated into the central focusing wheel to ensure comfortable handling. If you do not want to compromise on the quality of your binoculars and are looking for an extremely fair price-performance ratio, you will find it here.
The models of the PASSION 8,5x/10x and 12,5×50 series have a magnesium body to offer you the best possible materials. The rotating eyecups are made of solid aluminium to ensure robustness and precise adjustment. All in all, you get top class binoculars at an unbeatable price-performance ratio.
Worth mentioning is the balance that also the high-magnification binoculars 10x and 12.5×50 have. Due to the optimized balance, the image unsteadiness has been reduced to a maximum. You will not notice that you are using a 12.5x magnification.
Technical Specifications
Prism type |
. |
Schmidt-Pechan |
Magnification |
. |
8,5x |
Field of view (FOV) at 1.000y |
. |
315 |
Field of view (FOV) at 1.000m |
. |
105 |
Objective diameter (mm) |
Effective diameter |
50 |
Ocular diameter (mm) |
Effective diameter |
24,2 |
Exit pupil diameter (mm) |
Measurement of the pupillary ocular beam |
5,88 |
Eye Relief (inches) |
From the last optical surface |
0,75 |
Eye Relief (mm) |
From the last optical surface |
19 |
Housing |
Main body and hinge |
magnesium |
Close focus (feet) |
Shortest focal distance |
9,8 |
Close focus (meters) |
Shortest focal distance |
3 |
Inter pupillary distance (IPD) |
Centre pupil to centre pupil measurement |
58 – 76 |
Dioptric compensation range |
. |
-2,5/+2,5 |
Waterproof |
Mbars |
300 |
Transmission Daylight |
ISO 14490-5:2005 |
92% |
Height (inches) |
Without covers |
2,5 |
Height (mm) |
Without covers |
64 |
Weight (ounces) |
Without covers |
33,5 |
Weight (grams) |
Without covers |
950 |
Length (inches) |
At outside diameter |
6,9 |
Length (mm) |
At outside diameter |
175 |
Width (inches) |
Fully extended |
5,3 |
Width (mm) |
Fully extended |
135 |

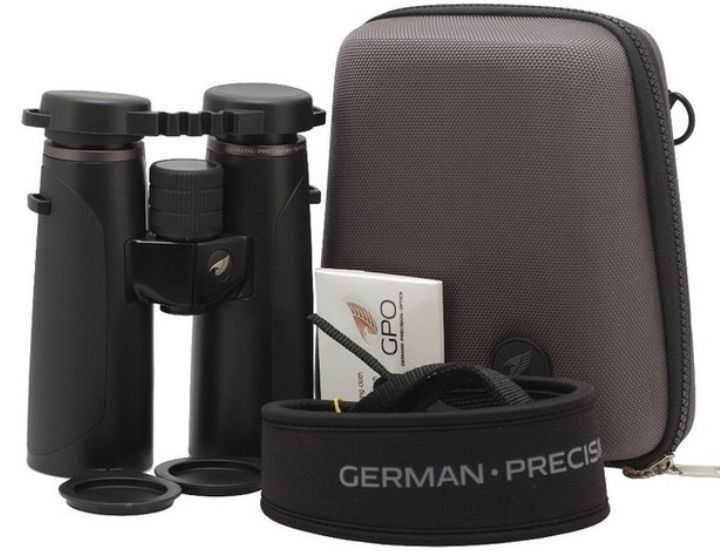

Accessories included with the purchase |
. |
instruction manual, cleaning cloth, hard |
